Stainless Steel 304 Fasteners
Most Trusted AISI 304L Nut Bolts Supplier in India
Are these 304 SS fasteners suitable for high-temperature?
SS 304 fasteners can handle intermittent high temperatures but prolonged use above 800°C can lead to sensitization, which effects its corrosion resistance properties. For high temperature applications you can opt for stainless steel 304h fasteners which is highly recommended.
| Temperature Range | Behavior |
|---|---|
| Up to ~870°C (1600°F) | Maintains good oxidation resistance |
| 925°C (1700°F) | Not suitable for long-term exposure |
| Over 1000°C | Loses mechanical properties and structural integrity |
Table of Content
Stainless Steel 304 Fasteners Specification
Bolt Sizes
M2 to M24
Screw Size
3/6″ to 2″
Nuts Size
M3 – M56 | 3/6″ to 2″
Washers Size
M3 – M56 | 3/6″ to 2″
Machine Screws Size
M1.6 – M12
ISO Standard
ISO 3506-1
304 stainless steel fasteners Length
3 mm to 200 mm
Stainless steel 304l fasteners Weldability
Excellent
Stainless steel 304 stud bolts Specific Heat
500 J/kg·K
Stainless steel 304 bolts and nuts Threads
UNF / BSW / BSF / METRIC / UNC
304 stainless steel screws Standards
DIN 931, 933, 934, 7991, 976, 125 / ASME B18.2.1, B18.3
Custom Sizes
We are Manufacturer of stainless steel 304 fasteners in custom sizes
AISI 304 Studs Type
Tap-End / Fully or Fine threaded / Double-End
Origin
Indian / Russian / Korean / European
304L SS Threaded Rod Condition
Threading / Cold Drawn
Manufacturing Technique
CNC Machined / Hot forging / Cold forging
SS 304 Screws Thread Pitch
Coarse Threads / Fine Threads
Stainless steel 304H Fasteners Finish
Phosphating / Passivation / HDG
ASTM A193 UNS S30400 Bolt Drive Style
- Cross
- Truss
- Torx
- Round
- Hex
- Oval
- Pan
304 stainless steel hex head bolts Head Types
- Phillips Drive
- Button head
- Slotted Drive
- Socket cap head
- Flat
- Hex washer head
- Slotted hex washer
WNR 1.4306 screws Thread Class
- 3G
- 4G
- 2G
- 5 ONF
- Class 2A (Medium fit)
- Class 3A (Tight fit)
- Class 1A (Loose fit)

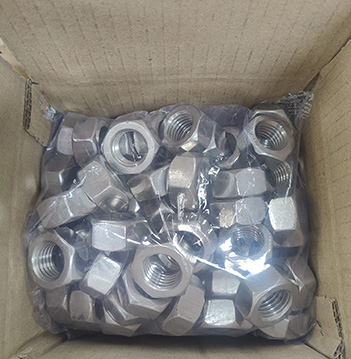

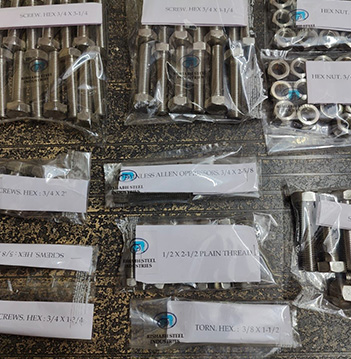

Packaging
- Wooden Pallet
- Carton Box
- Wooden Cases
- Blister Packs
Certificate
- Raw Materials Certificate
- EN 10204/3.1B
- 100% Radiography Test
- UT and PMI Test
Value Added Services
- Head Shank Drilling
- Head Painting
- Color Coding
- Laser Etching
Manufacturer of SS 304 Hex Bolt in Various Sizes at Factory Prices in Mumbai
Recently exported SS 304L fasteners to Oman and UAE
Stockist of ASTM A193 UNS S30400 Screw in M2–M24 Size Range
SS 304 Fasteners

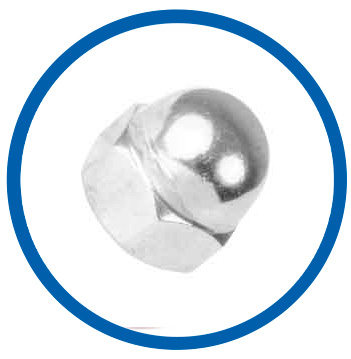

Alloy 304 Dome Nuts

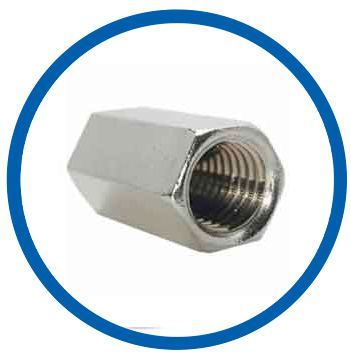

ASTM A193 UNS S30400 Coupling Nuts

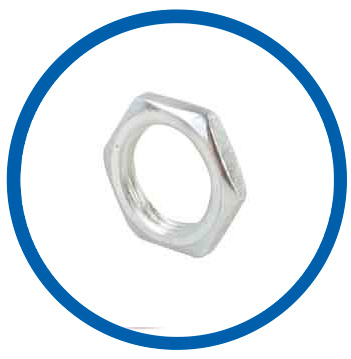

INOX 304 Panel Nuts

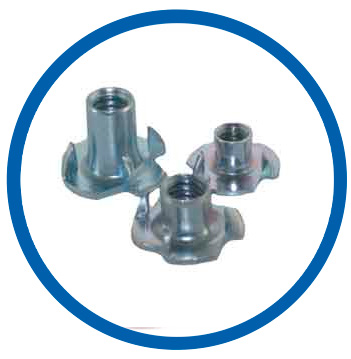

304 SS T Nuts

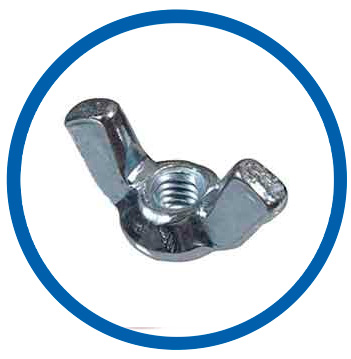

DIN 1.4301 Wing Nuts

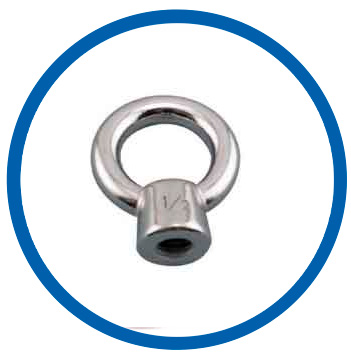

ASTM A193 SS 304 Eye Nuts

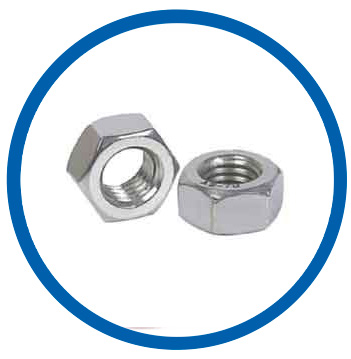

SUS 304 Hex Head Nuts

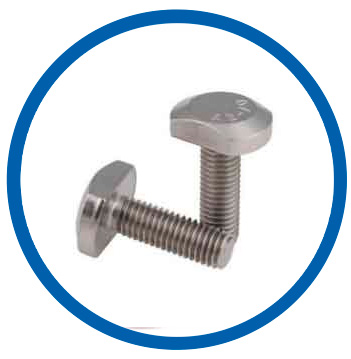

WNR 1.4301 T Bolts

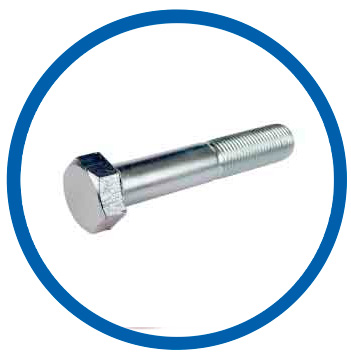

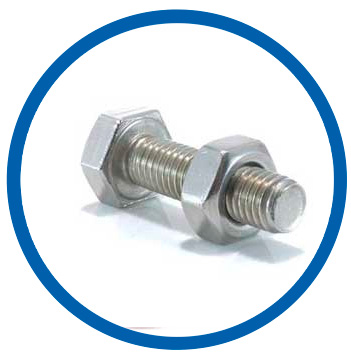

Stainless Steel 304 Hex Head Bolts

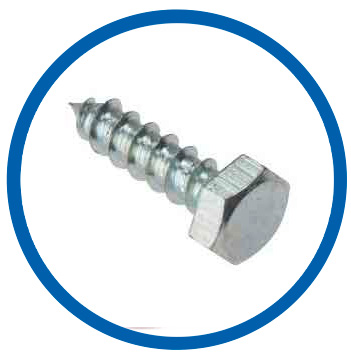

AISI 304 Hex Head Screw

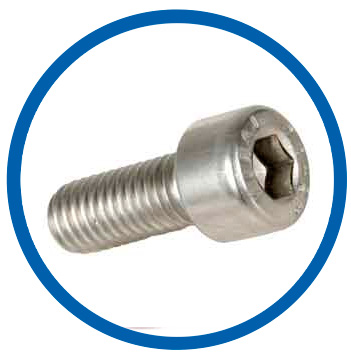

304 Stainless Steel Socket Head Screws

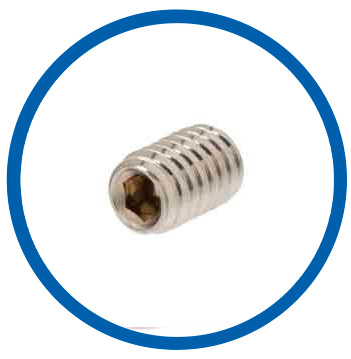

UNS S30400 Socket Set Screws

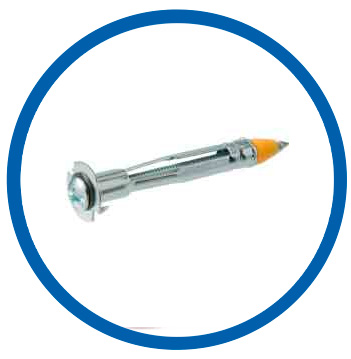

ASTM A193 UNS S30403 Anchor Screws

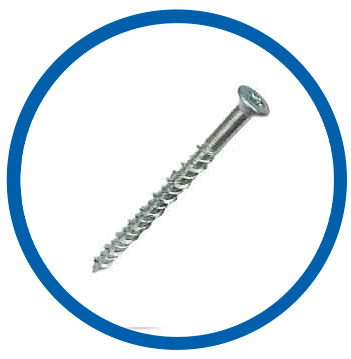

UNS S30403 Concrete Screws

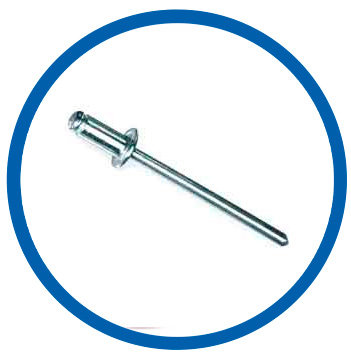

304L SS Blind Rivet

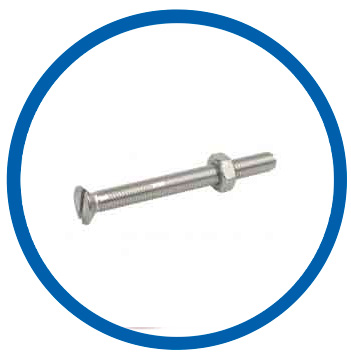

304L Stainless Steel Threaded Screws

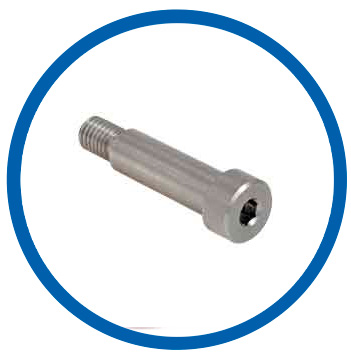

Alloy 304L Shoulder Screws

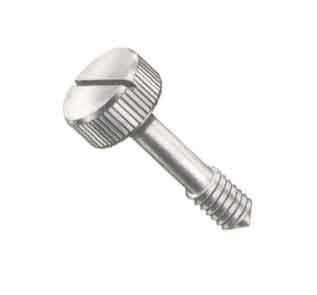

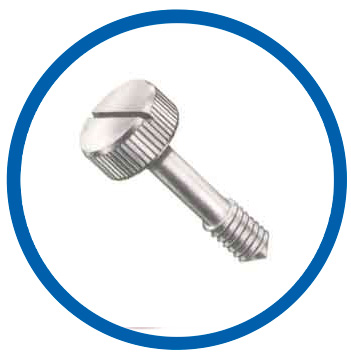

WNR 1.4306 Panel Screws

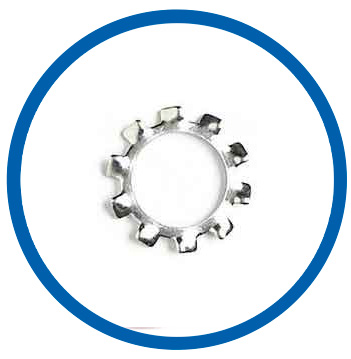

ASTM A193 SS 304L Star Washers
INOX 304L Bolts
DIN 1.4306 Screws

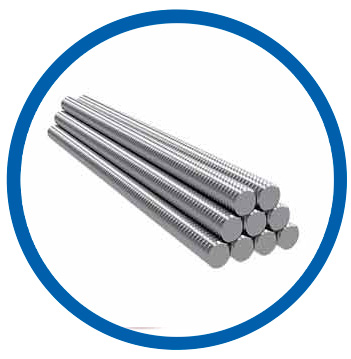

AISI 304L Threaded Rod

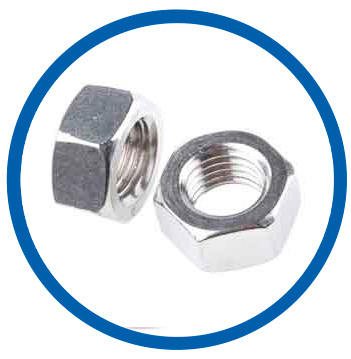

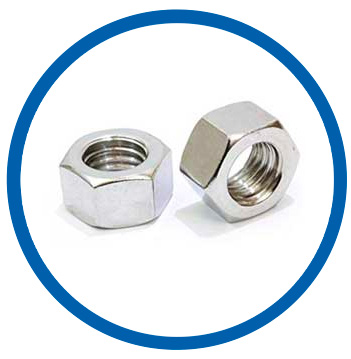

SS 304L Hex Nuts

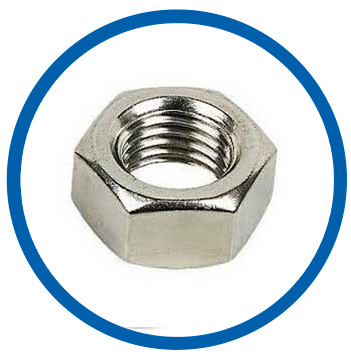

SUS 304L Heavy Hex Nuts
Stainless Steel 304L Nuts
SS 304H Washers

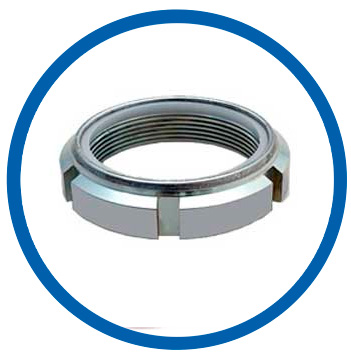

UNS S30409 Self Locking Nuts

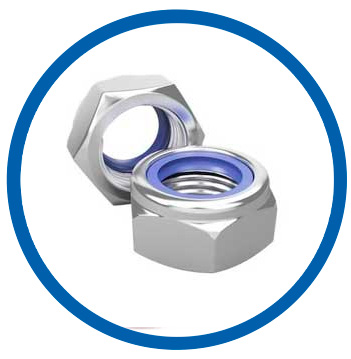

INOX 304H Nylon Insert Nuts

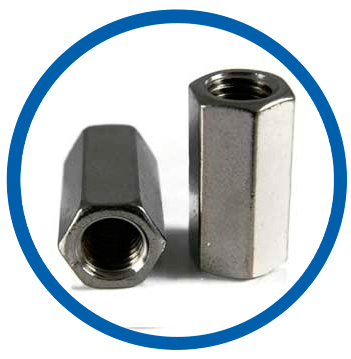

WNR 1.4948 Coupler Nuts

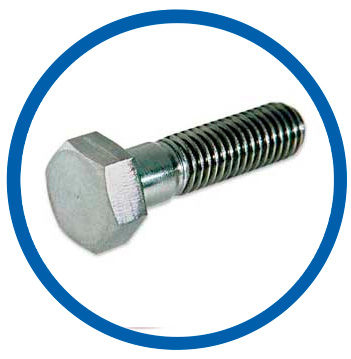

DIN 1.4948 Hex Cap Screw
ASTM A193 UNS S30409 Heavy Hex Bolt

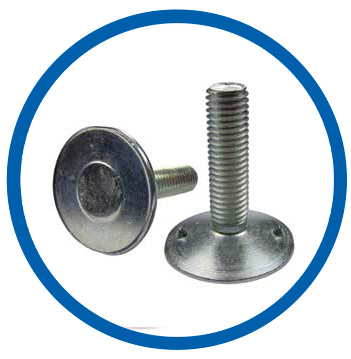

Stainless Steel 304H Elevator bolt

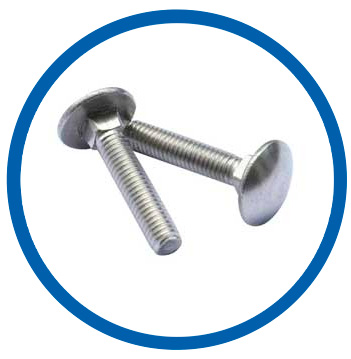

ASTM A193 SS 304H Carriage Bolt

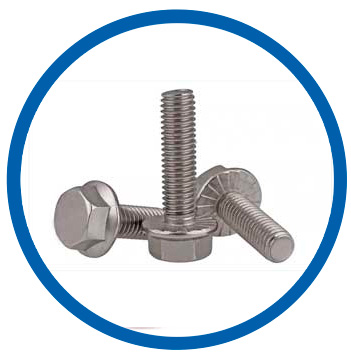

Alloy 304H Flange Bolt

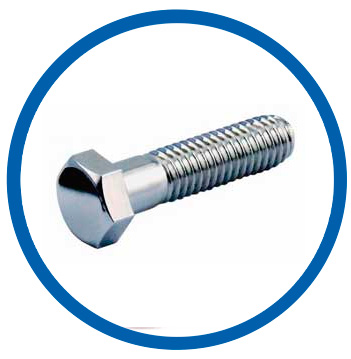

AISI 304H Heavy Hex Bolt

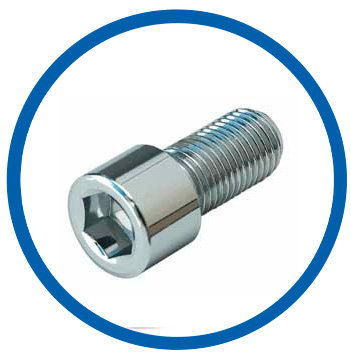

304H Stainless Steel Allen Cap Screw

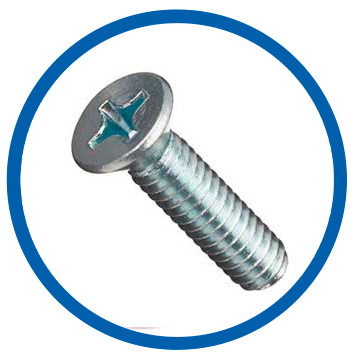

304H SS Machine Screw

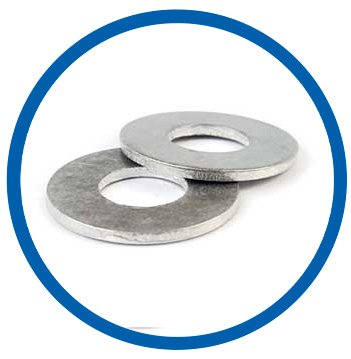

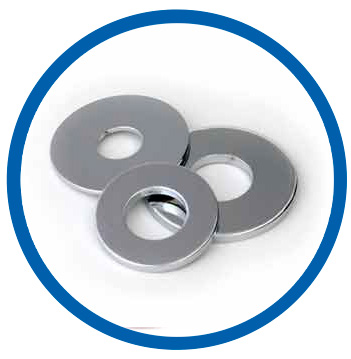

SUS 304H Flat Washers

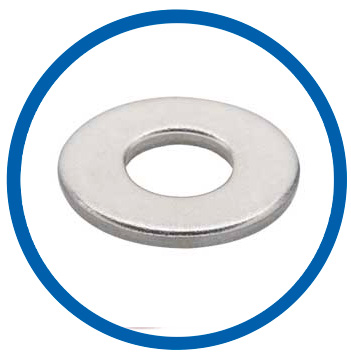

ASTM A193 UNS S30403 Round Washers

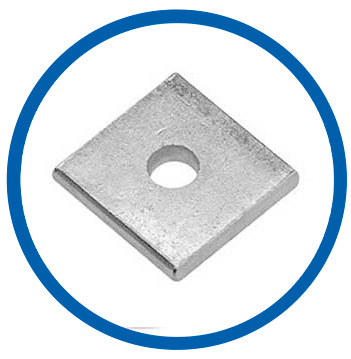

WNR 1.4306 Square Washers

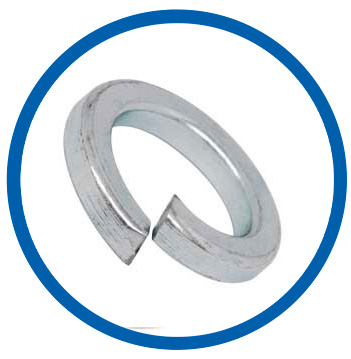

304H SS Spring Washer

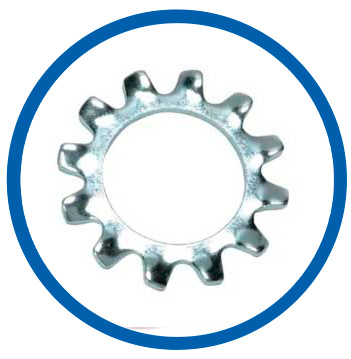

SUS 304 Lock Washer

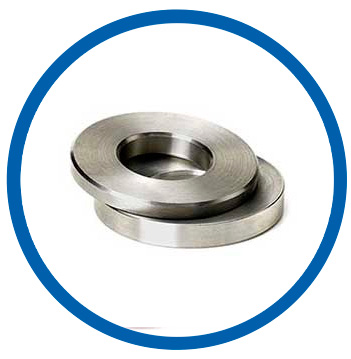

304L Stainless Steel Spherical Washer

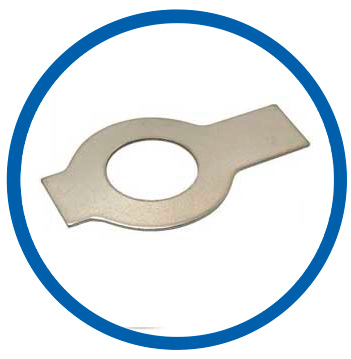

INOX 304L Tab Washers

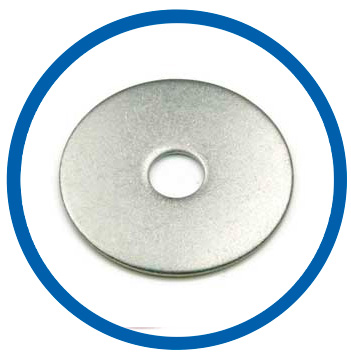

DIN 1.4948 Fender Washer

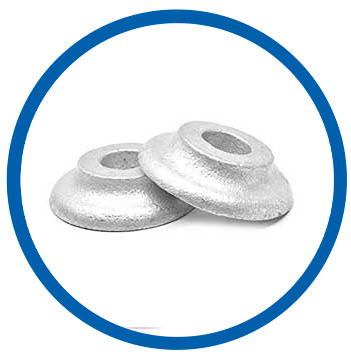

SS 304 Ogee Washer

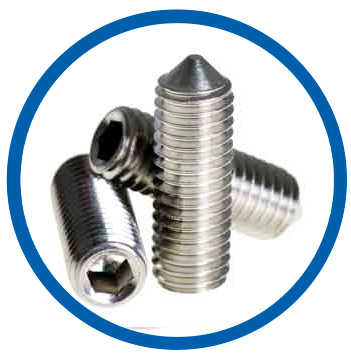

ASTM A193 UNS S30400 Grub Screws

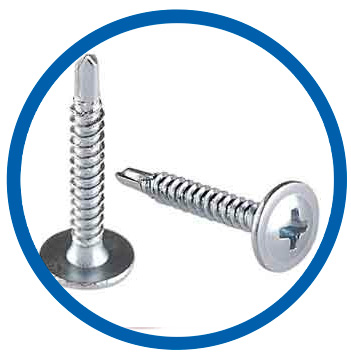

DIN 1.4301 Self Drilling Screws

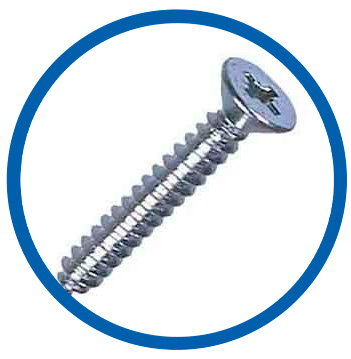

ASTM A193 SS 304H Self Tapping Screws

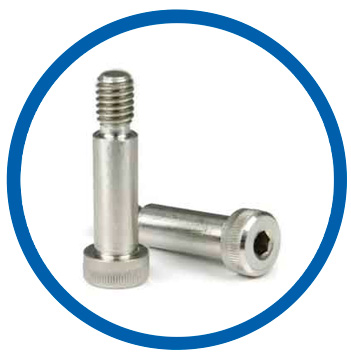

Alloy 304L Shoulder Bolts

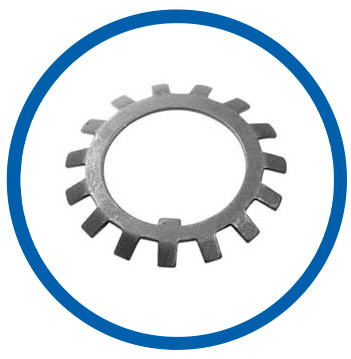

304 SS Dome Tooth Washer

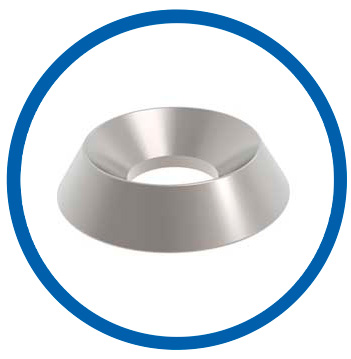

304H Stainless Steel Countersunk Washer

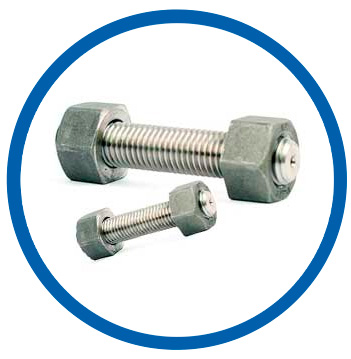

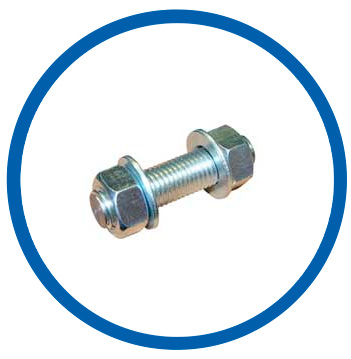

Alloy 304 Studbolts

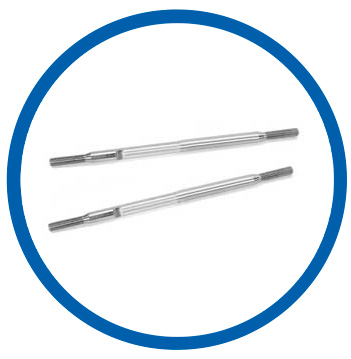

Stainless Steel 304 Tie Rod

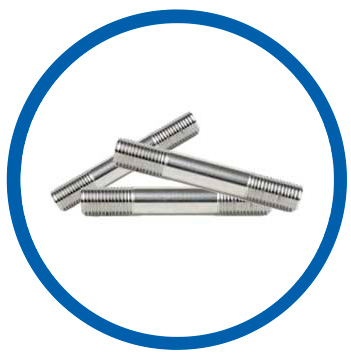

Stainless Steel 304H Double Ended Stud
INOX 304 Studbolt

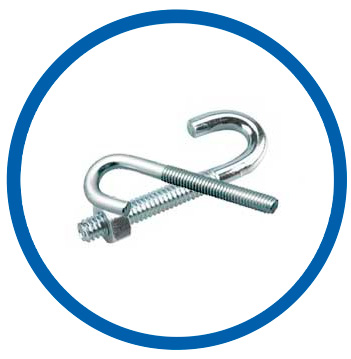

DIN 1.4306 J Bolts

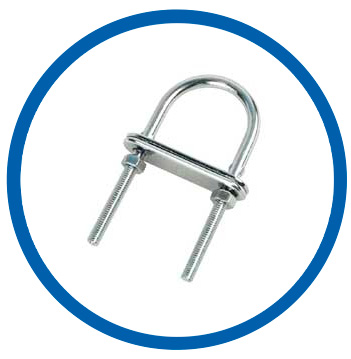

SS 304H U Bolts

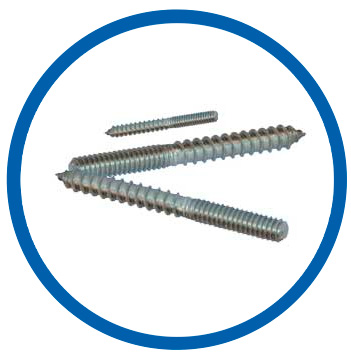

ASTM A193 SS 304 Hanger Bolt

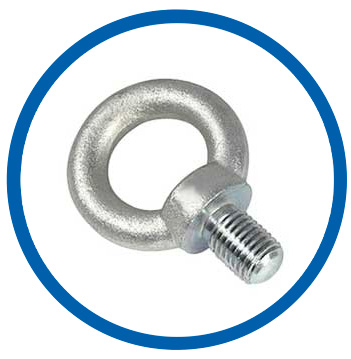

INOX 304H Eye Bolt

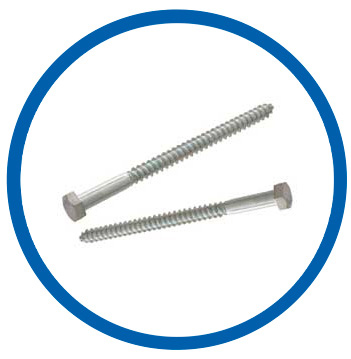

AISI 304L Lag Bolt
AISI 304H Carriage Bolt

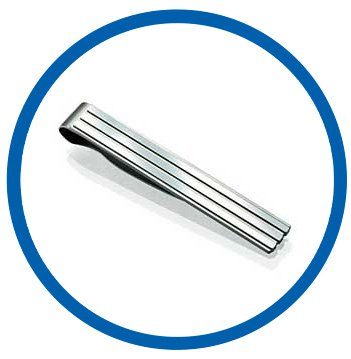

304L SS Tie Bar
We are trusted stainless steel 304 fasteners Manufacturer in India. We are supplier and exporter of SS 304H bolts and nuts in custom sizes to UAE, Spain, Nigeria and Malaysia.
| Product | Price in USD (100 Pcs) |
Price in Dirham (100 Pcs) |
Price in Euro (100 Pcs) |
|---|---|---|---|
| M5 x 40 Stainless Steel 304 Hexagon Head Bolts DIN 931 | US $11.55 | 42.41 AED | € 10.28 |
| M5 x 60 AISI 304 Hexagon Head Bolts DIN 931 | US $15.85 | 58.21 AED | € 14.11 |
| M8 x 60 SS 304 Hexagon Head Bolts DIN 931 | US $34.45 | 126.53 AED | € 30.67 |
| 304 Stainless Steel Dome Nuts M5 | US $4.58 | 16.83 AED | € 4.08 |
| Stainless Steel 304 Nyloc Nut DIN 985 M6 | US $3.22 | 11.84 AED | € 2.87 |
Above prices are for indication purposes for detailed price list you can contact us on sales@rishabhsteelindustries.com. We are stockist of Stainless steel 304L Fasteners in Mumbai.
Exporter of SUS 304 Heavy Hex Bolt as Per ASME B18.2.6M Standards
Our process to supply AISI 304 Bolts
Quality Manufacturing
Laboratory Tested
Quality Assurance
On Time Delivery
Shipping Globally
Does 304 stainless steel fasteners tarnish
AISI 304 Nut and Bolts are highly resistant to tarnishing, but under certain conditions such as exposure to High Humidity, Saltwater or Heat Exposure it may develop discoloration or surface dullness.
Refer AISI 304 Washer and Carriage Bolt Chemical Composition and Equivalent Grades
SS 304 Bolts Chemical composition
Carbon
0.08 (Max.)
Silicon
0.75 (Max.)
Manganese
2.0 (Max)
Phosphorus
0.045
Chromium
18.0 To 20.0
Sulfur
0.03 (Max.)
Nickel
8.0 To 10.5
Nitrogen
0.10 (Max.)
Stainless steel 304L Fasteners Chemical composition
Chromium
18.0 - 20.0
Sulfur
0.03 (Max.)
Nickel
8.0 - 12.0
Nitrogen
0.10 (Max.)
Carbon
0.030
Silicon
0.75 (Max.)
Manganese
2.0 (Max)
Phosphorus
0.045
Stainless steel 304H Fasteners Chemical composition
Chromium
18.0 - 20.0
Sulfur
0.03 (Max.)
Nickel
8.0 - 10.5
Nitrogen
-
Carbon
0.04 - 0.10
Silicon
0.75 (Max.)
Manganese
2.0 (Max)
Phosphorus
0.045
SUS 304 Screws Mechanical Properties
Tensile Strength
500 - 700 MPa
Proof Stress
190 MPa
Hardness
215 Max HB
Elongation
45 % Min
Stainless steel 304L Fasteners mechanical property
Tensile Strength
485 MPa
Proof Stress
170 MPa
Hardness
201 Max HB
Elongation
40 % Min
Stainless steel 304H Fasteners mechanical property
Tensile Strength
515 MPa
Proof Stress
205 MPa
Hardness
201 Max HB
Elongation
40 % Min
304 Stainless Steel Nuts equivalent grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 304H | 1.4301 | S30409 | - | - | - | - | - |
UNS S30400 Fastener Physical properties
| Property | Value |
|---|---|
| Melting Point | 1450 °C |
| Density | 8.00 g/cm3 |
| Modulus of Elasticity | 193 GPa |
| Thermal Conductivity | 16.2 W/m.K |
| Thermal Expansion | 17.2 x 10-6/K |
| Electrical Resistivity | 0.72 x 10-6 Ω.m |

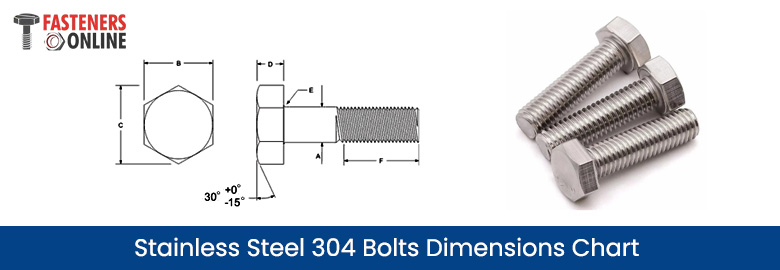

Stainless Steel 304 Bolts Dimensions Chart
| Bolt Size | A (max) | B | C (min) | D | E | F Thread Length for Bolt Length |
||
|---|---|---|---|---|---|---|---|---|
| max | min | 6" and shorter |
over 6" | |||||
| 1/4" | 0.260 | 7/16 | 0.484 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16" | 0.324 | 1/2 | 0.552 | 7/32 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8" | 0.388 | 9/16 | 0.620 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16" | 0.452 | 5/8 | 0.687 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2" | 0.515 | 3/4 | 0.826 | 11/32 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8" | 0.642 | 15/16 | 1.033 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4" | 0.768 | 1-1/8 | 1.240 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8" | 0.895 | 1-5/16 | 1.447 | 37/64 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1" | 1.022 | 1-1/2 | 1.653 | 43/64 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8" | 1.149 | 1-11/16 | 1.859 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4" | 1.277 | 1-7/8 | 2.066 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8" | 1.404 | 2-1/16 | 2.273 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2" | 1.531 | 2-1/4 | 2.480 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
| 1-3/4" | 1.785 | 2-5/8 | 2.893 | 1-5/32 | 0.12 | 0.04 | 3.750 | 4.000 |
| 2" | 2.039 | 3 | 3.306 | 1-11/32 | 0.12 | 0.04 | 4.250 | 4.500 |
| 2-1/4" | 2.305 | 3-3/8 | 3.719 | 1-1/2 | 0.19 | 0.06 | 4.750 | 5.000 |
| 2-1/2" | 2.559 | 3-3/4 | 4.133 | 1-21/32 | 0.19 | 0.06 | 5.250 | 5.500 |
| 2-3/4" | 2.837 | 4-1/8 | 4.546 | 1-13/16 | 0.19 | 0.06 | 5.750 | 6.000 |
| 3" | 3.081 | 4-1/2 | 4.959 | 2 | 0.19 | 0.06 | 6.250 | 6.500 |
| 3-1/4" | 3.335 | 4-7/8 | 5.372 | 2-3/16 | 0.19 | 0.06 | 6.750 | 7.000 |
| 3-1/2" | 3.589 | 5-1/4 | 5.786 | 2-5/16 | 0.19 | 0.06 | 7.250 | 7.500 |
| 3-3/4" | 3.858 | 5-5/8 | 6.198 | 2-1/2 | 0.19 | 0.06 | 7.750 | 8.000 |
| 4" | 4.111 | 6 | 6.612 | 2-11/16 | 0.19 | 0.06 | 8.250 | 8.500 |

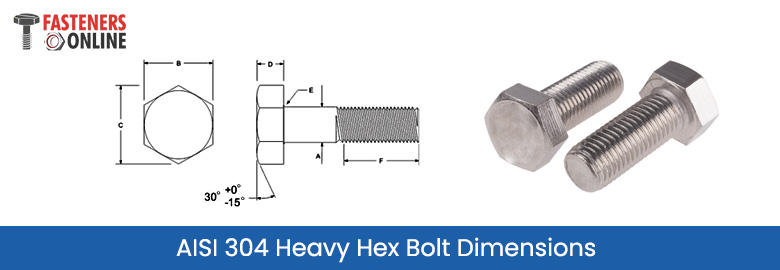

AISI 304 Heavy Hex Bolt Dimensions
| Bolt Size | A (max) | B | C (min) | D | E | F Thread Length for Bolt Length |
||
|---|---|---|---|---|---|---|---|---|
| max | min | 6" and shorter |
over 6" | |||||
| 1/2" | 0.515 | 7/8 | 0.969 | 11/32 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8" | 0.642 | 1-1/16 | 1.175 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4" | 0.768 | 1-1/4 | 1.383 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8" | 0.895 | 1-7/16 | 1.589 | 37/64 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1" | 1.022 | 1-5/8 | 1.796 | 43/64 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8" | 1.149 | 1-13/16 | 2.002 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4" | 1.277 | 2 | 2.209 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8" | 1.404 | 2-3/16 | 2.416 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2" | 1.531 | 2-3/8 | 2.622 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
| 1-3/4" | 1.785 | 2-3/4 | 3.035 | 1-5/32 | 0.12 | 0.04 | 3.750 | 4.000 |
| 2" | 2.039 | 3-1/8 | 3.449 | 1-11/32 | 0.12 | 0.04 | 4.250 | 4.500 |
| 2-1/4" | 2.305 | 3-1/2 | 3.862 | 1-1/2 | 0.19 | 0.06 | 4.750 | 5.000 |
| 2-1/2" | 2.559 | 3-7/8 | 4.275 | 1-21/32 | 0.19 | 0.06 | 5.250 | 5.500 |
| 2-3/4" | 2.827 | 4-1/4 | 4.688 | 1-13/16 | 0.19 | 0.06 | 5.750 | 6.000 |
| 3" | 3.081 | 4-5/8 | 5.102 | 2 | 0.19 | 0.06 | 6.250 | 6.500 |
| Nut Size (mm) | Diameter* (mm) | Height (mm) | ||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 20 | 30 | 16 | 10 | 20 |
| 18 | 27 | 15 | 9 | 18.5 |
| 16 | 24 | 13 | 8 | 16 |
| 14 | 22 | 11 | 7 | 14 |
| 12 | 19 | 10 | 6 | 12 |
| 10 | 17 | 8 | 5 | 10 |
| 8 | 13 | 6.5 | 4 | 8 |
| 7 | 11 | 5.5 | 3.5 | - |
| 6 | 10 | 5 | 3.2 | 6 |
| 5 | 8 | 4 | 2.7 | 5 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 2.5 | 5 | 2 | 1.6 | - |
| 2 | 4 | 1.6 | 1.2 | - |

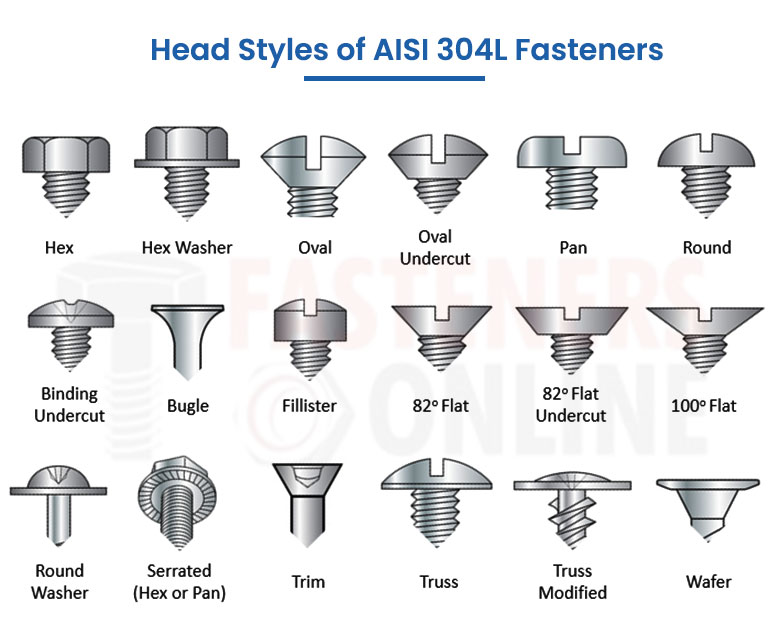

Popular Head Styles of AISI 304L Fasteners
Material testing of Stainless Steel 304H Fasteners
ASTM A193 UNS S30400 Hex Bolt finishing
Stainless Steel 304L Fasteners Applications
Oil and Gas industry
Paper and pulp industry
Chemical plants
Petrochemical
Structural assemblies
Piping systems
Expected delivery times of INOX 304L Machine screws in different countries
| Country | DHL Express (Working Days) | UPS (Working Days) |
|---|---|---|
| United States | 4–6 days | 7–10 days |
| Germany | 4–6 days | 7–10 days |
| France | 4–6 days | 7–10 days |
| Canada | 5–7 days | 8–12 days |
| United Kingdom | 4–6 days | 7–10 days |
| Japan | 3–5 days | 6–9 days |
| Qatar | 2–4 days | 4–6 days |
| United Arab Emirates | 2–4 days | 4–6 days |
| Saudi Arabia | 2–5 days | 4–7 days |
| Bahrain | 3–5 days | 5–7 days |
| Oman | 3–5 days | 5–7 days |
| Australia | 6–8 days | 14–17 days |
| Kuwait | 3–5 days | 5–7 days |
Industrial Products
Types
LOOKING FOR TRUSTED AND RELIABLE MANUFACTURER OF FASTENERS
Buy in Bulk & Save on All Orders
Contact Us Today With Our Online Form
